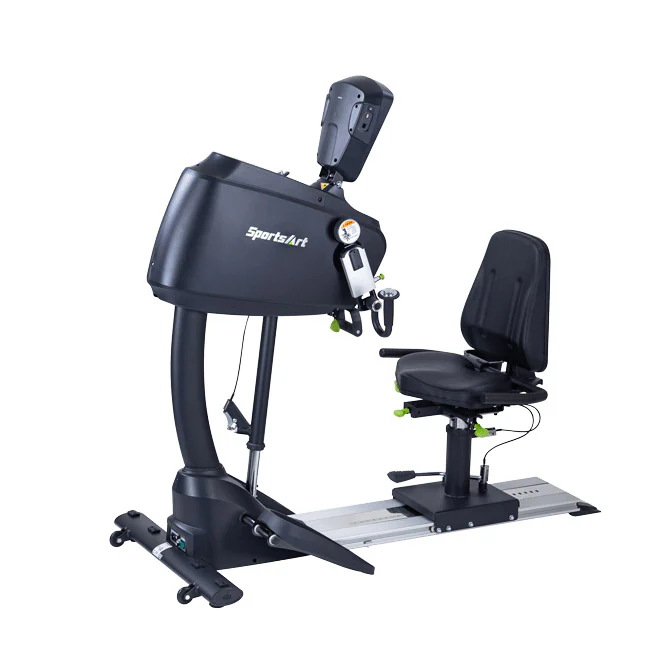

UB521M BILATERAL UPPER BODY ERGOMETER

SportsArt is an industry leader in rehabilitative equipment manufacturing and the UB521M Upper Body Ergometer is a therapist’s favorite modality for seated, standing or users needing wheelchair access.

Features

• Bi-directional resistance for varied exercise and therapy sessions
• Hand crank position rotates 180º for opposing or in unison arm motion
• Roll away seat carriage for wheelchair patients and optional wheelchair platform
• Adjustable ROM radius with 4 settings at 6.5”, 7.5”, 8.5” and 9.5”
• Belt drive offers quiet, smooth operation with seamless transition between forward and reverse motion
• Tilting console and pivoting display offer customized fit for most users in seated or standing position
• Bi-directional handles
• Vertically adjustable seat
• Low starting resistance (< 5 watts)

Technical Details

• Unit Weight: 268 lbs / 120 kg
• Dimensions (L x W x H): 69.3 x 31.5 x 75 in / 176 x 80 x 190.5 cm
• Resistance Levels: 20 levels with 0.1 increments
• Power Requirements: 15A / 120v AC - Grounded 220V / 50Hz
• Plug Requirements: N/A
• Max User Weight: 500 lbs / 227 kg
• Readouts: Workout Level, Calories, Time, RPM, Distance, METs, Watts, Speed
• Workout Programs: Custom Interval, Random, Hill, Track, Iso Kinetic, Iso Strength, Custom HR, Cardio/Weight Loss, Custom HR, ActivZone
• Optional Features: Wheelchair ramp, Wheelchair tie down, Grip assist gloves

Warranty

• Type: Full Commercial - no usage limit
• Frame: Lifetime
• Parts: 5 Years
• Wear Items: 5 Years
• Labor: 3 Year
