Penguin Chillers 316 Stainless Steel Exchanger Water Chiller

Product image 1
1 / 7

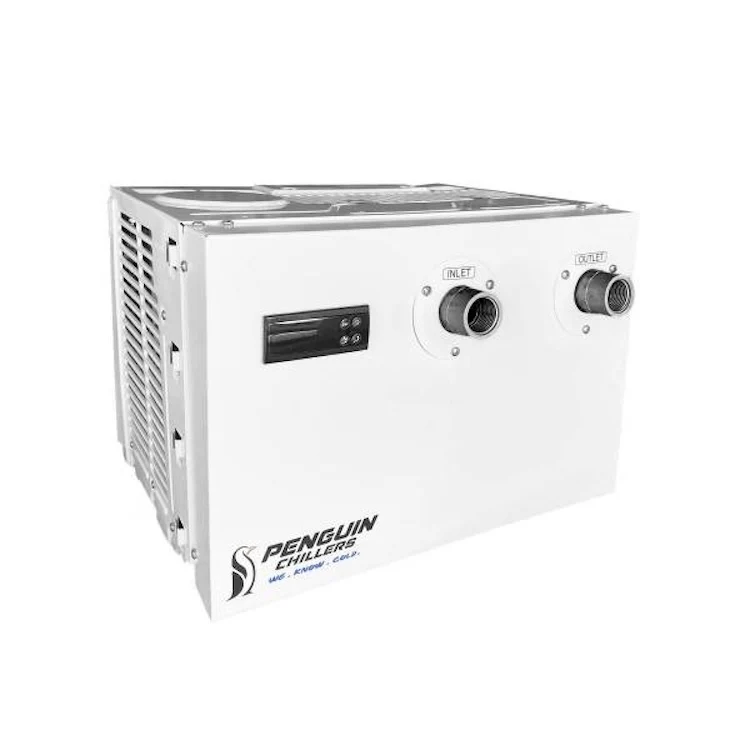

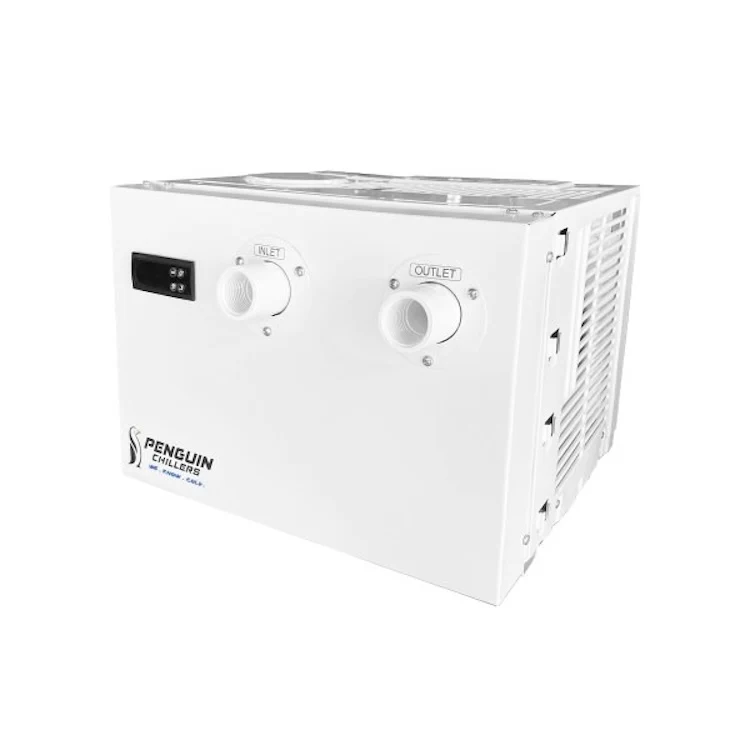

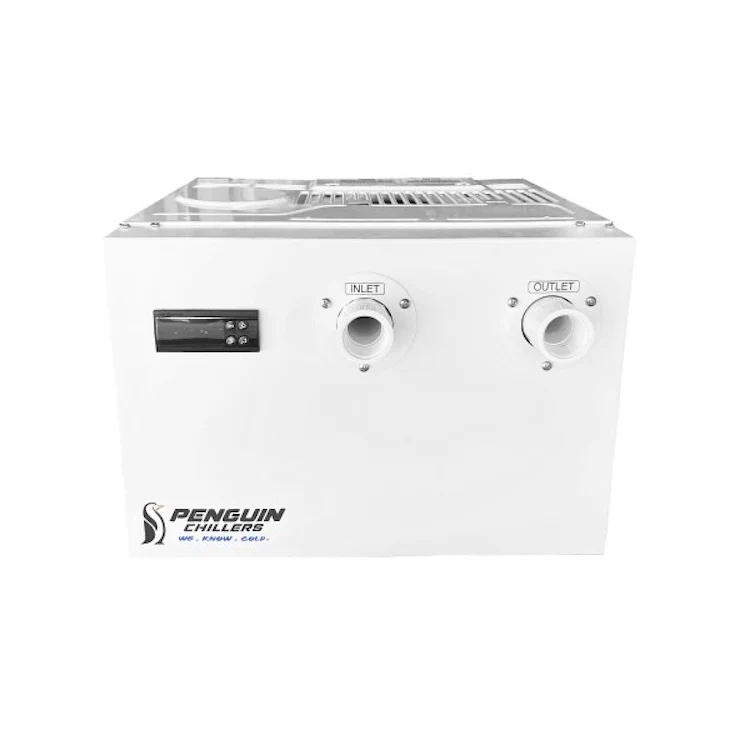

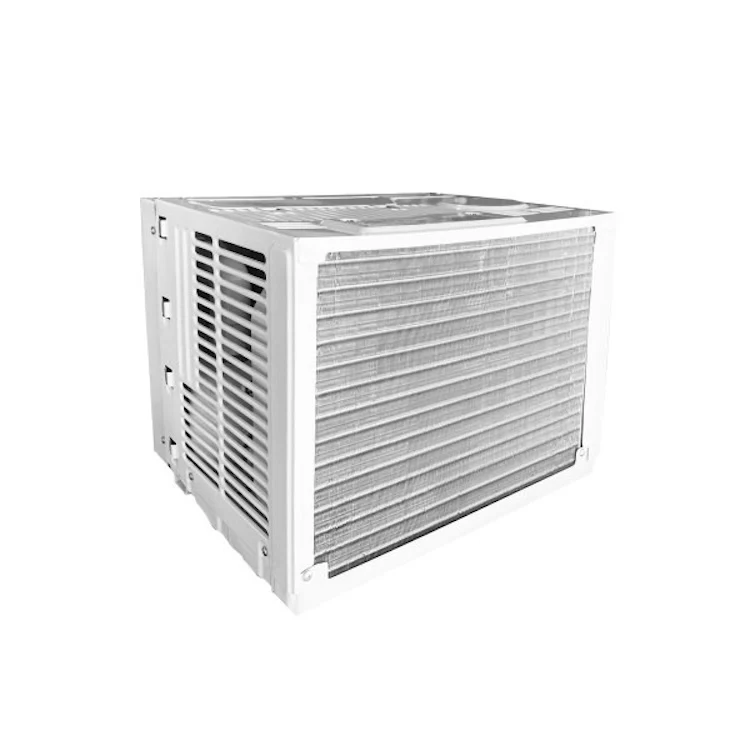

Penguin Chillers 316 Stainless Steel Exchanger Water Chiller

Penguin Chillers 316 Stainless Steel Exchanger Water Chiller

Designed for applications that need the chiller to withstand higher pressures than our standard line of water chillers, as well as anodizing baths that contain up to 15% solutions of sulfuric acid.

Please note: Our standard line of Penguin Chillers are not intended for outdoor use. Additionally, please place any set-up using this chiller in area that can withstand wetness, moisture, and/or condensation.

  • 3/4″ female NPT inlet/outlet connections
  • 316 Stainless coil and exchanger – withstands up to 15% sulfuric acid solutions – perfect for anodizing
  • Recommended operating range: ~40°F to ~100°F
  • Suitable for up to 50psi applications

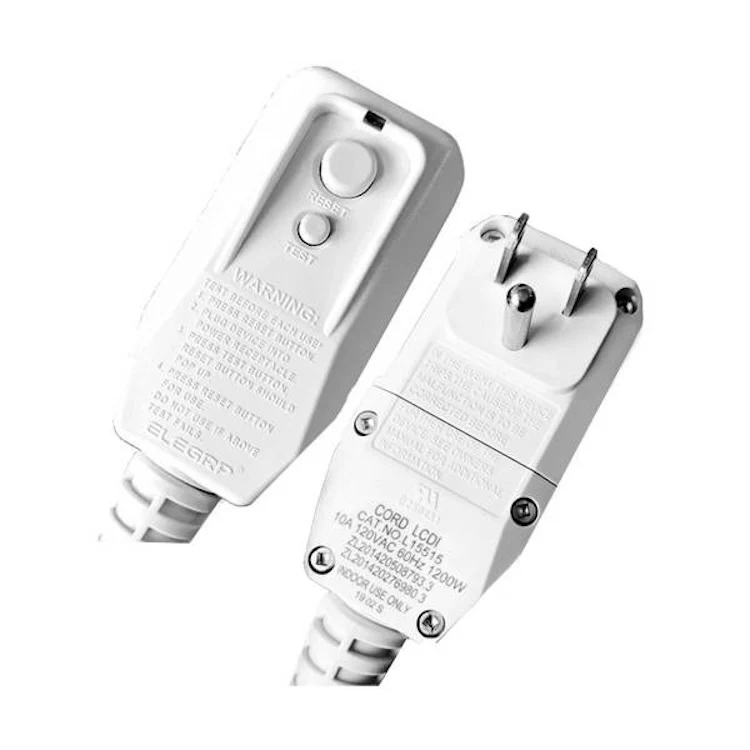

  • 6′ Power Cord
  • 1 Year Product Warranty
  • Proudly made in the USA

Digital Controller: The controller constantly monitors your systems incoming fluid temperature, therefore flow is needed at all times in order for it to successfully read current temperatures. When your fluid temperature moves above the set point, the controller turns the compressor and fan on and begins cooling the water. Once the set point temperature is reached the compressor and fan will turn off.

Penguin Chillers 316 Stainless Steel Exchanger Water Chiller



Chiller Comparison Chart

HP BTU/hr Electrical Dimensions Weight
1/2HP HE 5,750 BTU/hr 110 – 120V / 3.9A / 450W 16.25″W x 14.75″D x 12.5″H 44lbs
1HP 10,000 BTU/hr 110 – 120V / 7.2A / 830W 19.25″W x 19.75″D x 14.25″H 64lbs
1HP HE 11,500 BTU/hr 110 – 120V / 7.2A / 830W 19.25″W x 19.75″D x 14.25″H 66lbs
1.5 HP 15,000 BTU/hr 110 – 120V / 11A / 1270W 26.5″W x 23.75″D x 18″H 100lbs
2.5 HP 25,000 BTU/hr 208 – 240V / 14.7A / 3,200W / Single 26.50”W x 25”D x 18.50”H 135lbs
Select Size
From $435.00

Original: $1,449.99

-70%
Penguin Chillers 316 Stainless Steel Exchanger Water Chiller

$1,449.99

$435.00

Product Information

Shipping & Returns

Description

Penguin Chillers 316 Stainless Steel Exchanger Water Chiller

Designed for applications that need the chiller to withstand higher pressures than our standard line of water chillers, as well as anodizing baths that contain up to 15% solutions of sulfuric acid.

Please note: Our standard line of Penguin Chillers are not intended for outdoor use. Additionally, please place any set-up using this chiller in area that can withstand wetness, moisture, and/or condensation.

  • 3/4″ female NPT inlet/outlet connections
  • 316 Stainless coil and exchanger – withstands up to 15% sulfuric acid solutions – perfect for anodizing
  • Recommended operating range: ~40°F to ~100°F
  • Suitable for up to 50psi applications
  • 6′ Power Cord
  • 1 Year Product Warranty
  • Proudly made in the USA

Digital Controller: The controller constantly monitors your systems incoming fluid temperature, therefore flow is needed at all times in order for it to successfully read current temperatures. When your fluid temperature moves above the set point, the controller turns the compressor and fan on and begins cooling the water. Once the set point temperature is reached the compressor and fan will turn off.

Penguin Chillers 316 Stainless Steel Exchanger Water Chiller



Chiller Comparison Chart

HP BTU/hr Electrical Dimensions Weight
1/2HP HE 5,750 BTU/hr 110 – 120V / 3.9A / 450W 16.25″W x 14.75″D x 12.5″H 44lbs
1HP 10,000 BTU/hr 110 – 120V / 7.2A / 830W 19.25″W x 19.75″D x 14.25″H 64lbs
1HP HE 11,500 BTU/hr 110 – 120V / 7.2A / 830W 19.25″W x 19.75″D x 14.25″H 66lbs
1.5 HP 15,000 BTU/hr 110 – 120V / 11A / 1270W 26.5″W x 23.75″D x 18″H 100lbs
2.5 HP 25,000 BTU/hr 208 – 240V / 14.7A / 3,200W / Single 26.50”W x 25”D x 18.50”H 135lbs
