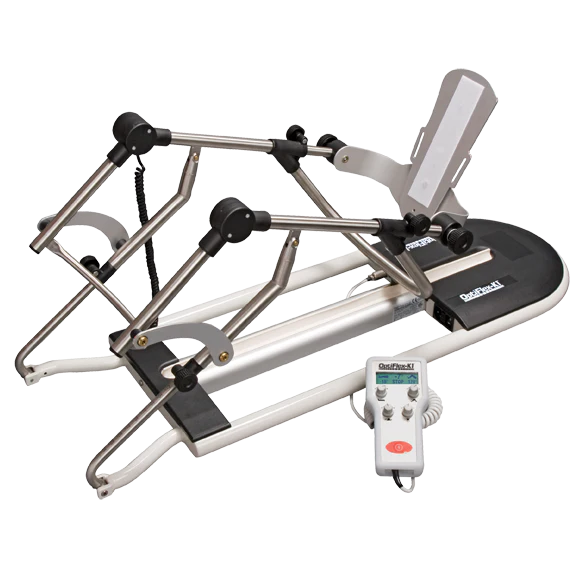

Chattanooga OptiFlex-K1
OptiFlex-K1
Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.
Patient Kit Sold Separately
Features & Benefits
- Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
- Only 38 inches (97 cm) long
- Wide low-profile, closed-base frame for stability
- Faster motor speed
- Single screw drive
- Reversible footplate for shorter legs
- Range of Motion (ROM): -10° to 120°
- On-board power supply
- Patient lockout feature
- Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
- Two-year warranty
Technical Specs
- Knee Flexion: 120°
- Knee Extension: -10°
- Speed: 25° - 180°/minute
- Pauses: 0 - 59 seconds
- Force Reversal: 45 Kp of force* (built-in)
- Patient Height: 4 - 6.5 ft (1.2 - 2 m)
- Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
- Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
- Mains Power: 100V-240V, AC 50-60Hz
- Unit Weight: 23 lb (10.4 kg)
- Shipping Weight: 54 lb (24.5 kg)
- Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
- Electrical Safety Class: Class 1, Type B
-
Safety Tests:
- IEC 60601, 1:1988 +A1:1991, +A2:1995
- CAN/CSA C22.2 NO 601.1 M90
- ANSI/UL 60601-1
- IEC 60601-1-2
- IEC 60601-1-4
- ISO 14971
- ISO 10993-1
Original: $3,240.00
-70%$3,240.00
$972.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
OptiFlex-K1
Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.
Patient Kit Sold Separately
Features & Benefits
- Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
- Only 38 inches (97 cm) long
- Wide low-profile, closed-base frame for stability
- Faster motor speed
- Single screw drive
- Reversible footplate for shorter legs
- Range of Motion (ROM): -10° to 120°
- On-board power supply
- Patient lockout feature
- Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
- Two-year warranty
Technical Specs
- Knee Flexion: 120°
- Knee Extension: -10°
- Speed: 25° - 180°/minute
- Pauses: 0 - 59 seconds
- Force Reversal: 45 Kp of force* (built-in)
- Patient Height: 4 - 6.5 ft (1.2 - 2 m)
- Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
- Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
- Mains Power: 100V-240V, AC 50-60Hz
- Unit Weight: 23 lb (10.4 kg)
- Shipping Weight: 54 lb (24.5 kg)
- Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
- Electrical Safety Class: Class 1, Type B
-
Safety Tests:
- IEC 60601, 1:1988 +A1:1991, +A2:1995
- CAN/CSA C22.2 NO 601.1 M90
- ANSI/UL 60601-1
- IEC 60601-1-2
- IEC 60601-1-4
- ISO 14971
- ISO 10993-1
